40hp Electric float switch submersible water pump

40hp Electric float switch submersible Water Pump   Product Description   40hp Electric float switch submersible water Pump Performance:

Vertical Sewage Pump Performance
Type	Flow (m3/h)	Head (m)	Speed (r/min)	Motor Power    (KW)	Efficiency     (%)
40AQW	8.4-14.4	14-16	2900	1.5	42-70
50AQW	7-50.4	8-36	1450-2900	0.75-7.5	46-62
65AQW	17.5-44.4	11-30.2	2900	2.2-4	39-72
80AQW	20.3-72	5.7-27.5	2900	2.2-7.5	51-75
100AQW	35-120	5.6-38.5	1450	4-15	46-80
150AQW	49-300	5.5-44.5	1450	5.5-37	58-82
200AQW	110-480	5.7-44.5	1450	11-75	63-83
250AQW	420-840	7-35	980-1450	30-90	63-84.5
300AQW	280-1140	6.7-27	980-1450	45-110	68-84.5
350AQW	700-1800	8-40	980	45-160	68-85
400AQW	1050-2640	12-33	980	132-160	71-85
500AQW	1400-3600	9-22.5	980	110-200	72-85

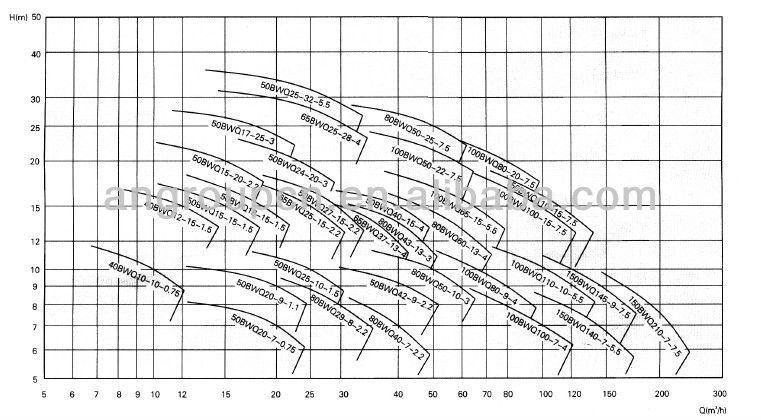

    40hp Electric float switch submersible water pump Curve:       In electrical control, according to the user's requirements, respectively, the following two types  of diving sewage pump.           1.common type: the structure is not installed on overtemperature, leakage protection device, in the electric control board without   a corresponding overtemperature, leakage protection circuit. Its protective function leakage, lack phase, short circuit, overload, earth.   2.Full insurance type: in the structure and electric control panel for the pump to provide a comprehensive protection, its protection functions  leakage, lack phase, short circuit, overload, grounding, overtemperature, leakage. All insurance must be longwei type sewage diving pumps used in   conjunction with dedicated control cabinet to achieve the perfect results.   Application   Primarily for the construction of the buildings,residential quarters,public works,road traffic and construction,sewage plants,small sewage treatment plants,hospital and other occasions,delievery of solid particles and long fibers containing sewage,waste water, rainwater ,ect.   40hp Electric float switch submersible water pump constructure:     Our Product:         Packaging & Shipping     Our Services An Pump Machinery Company to Customers:   1)Quality first. We guaranteed every part of the pump must be inspected closely 2)We can help you select suitable pump model according to your working condition and requirements. 3)We can design the related base or engine for your pumps. 4)Fast delivery time, large quantity of spare parts in stock.   Company Information   Our Factory:   Certifcation:    Contact Us     Contact us:   Related Water Pump

End Suction Pump	Split casing pump	Multistage pump



Contact us if you need more details on Submersible Water Pump. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Float Switch Submersible Water Pump、40hp Submersible Water Pump. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Submersible Sewage Pump
