small electric motor driven sump pumps using for rainwater and sewage
Product Description

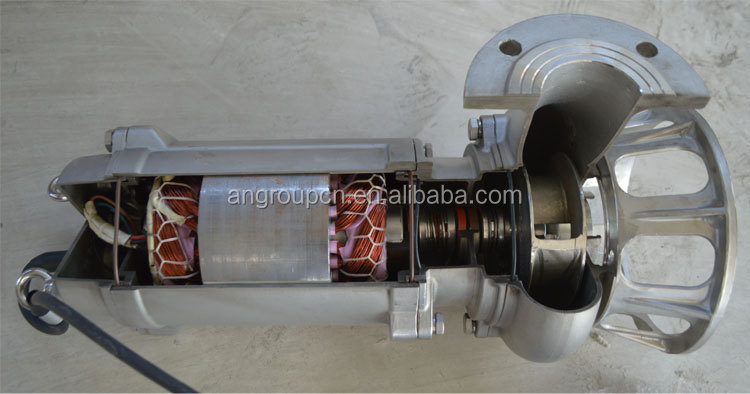

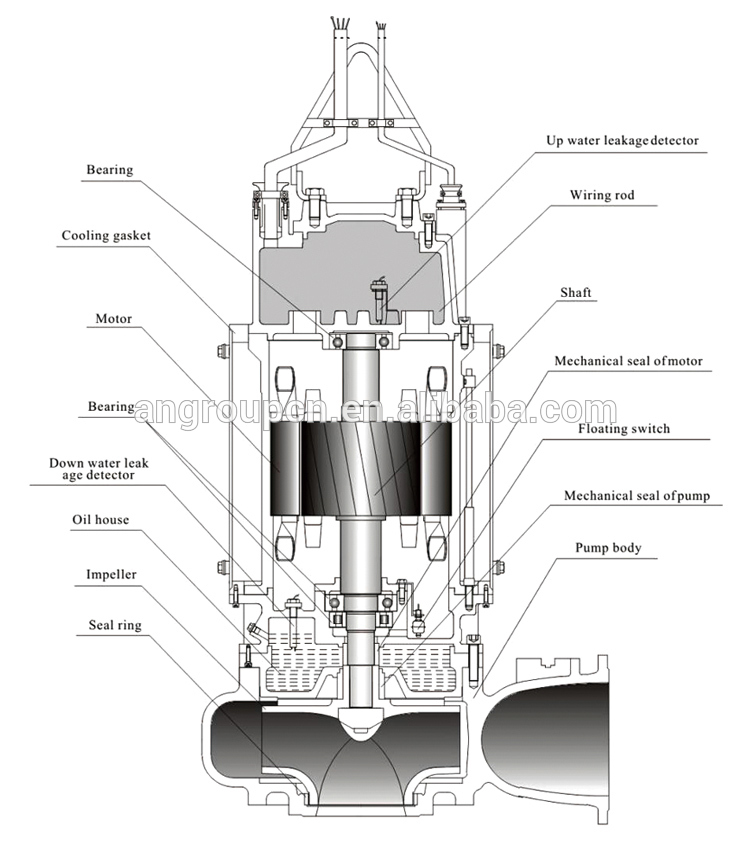

small electric motor driven sump pumps using for rainwater and sewagePProduct Description ASW series Submersible Sewage Pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defence, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics. ASW Pump is high efficiency, energy saving, non-blocking, anti-winding, long life and other notable features can be installed with automatic coupling device. And a common type, auto-mixing type, auto-shredding type, auto-mixing chopped and anti-flushing type five kinds of models. Construction Bearing:
Imported SKF of NTN bearing, which, with a reasonable configuration, can oxtend the duration of the pump. Cooling:
The built in cooling system can make the pump normally work whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the beat produced by the motor from the pump circulation to the cooling barrel and to the pump casing and, when external cooling is required, the cooling sleeve may be separated from the pump casing and individually connected to the cooling system. Motor:
Of F class insulation, max. working temperatures 155 C, and of a protective grade IP68 with the effective seal.
Mechanical seal: Use high quality mechanical seal, two ways of the seal are in series with each other and individually work to separate the motor from the pump seal to provide the motor with a dual protection.
Oil chamber:
Oil can lubricate and cool the mechanical seal and realize the attached function of safety by preventing liquid from penetrating into the motor.
Impeller:
With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency. There are suitable impellers at choice for every point of working condition.
Pump casing:
Use the know-how of CAD/CAM to make it of max. efficiency and min wearability
Shaft:
The pump is coaxial with the motor and the sealing device on the end of the shaft prevents against contacting with the medium to protect is from corrosion.
Application (1) Waste water drainage in factories and industries. (2) Drain system for municipal sewage plant (3) Waste water drainage in residential area. (4) Flood system drainage (5) Waste water drainage in hospitals and hotels (6) Municipal facilities and construction area (7) Exploration and mining equipment (8) Pump for biomass pool and agriculture irrigation (9) River and pond dredging PProduct Show
CCompany Information
AN Pump Factory History: Established in 1986
Business Type: Manufacturer and exporter
Main Products: Slurry Pump , submersible Sewage Pump , Stainless Steel Pump, Water Pump , Sand and Gravel Pump, Dredger Pump , Pulp Pump , Sea Water Pump, Irrigation Pump, Diesel Water Pump, Chemical Pump, Circulation Pump etc. VIEW MORE>> PPackaging & Shipping
FFAQ Can you produce the pump with my own brand ? Yes, we have been offering OEM service for 30 years. Could we pay a visit to your factory ? Yes, you are always welcome to visit our factory. Is there any after-sales service? Yes, we can arrange our engineer to go to your application site for assembly or maintenance.Can you help us do the custom clearance ? Yes, we can. We can help you find a professional custom clearance company to do it. . What information should I let you know if I want to get a quotation?Please let us know the pump capacity, head, medium, operation situation, quantity, etc.Can you produce goods with special specification ? First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible Contact us if you need more details on Electric Motor Water Pump. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Small Sump Pump、Electric Driven Hydraulic Pump. If these products fail to match your need, please contact us and we would like to provide relevant information.
Imported SKF of NTN bearing, which, with a reasonable configuration, can oxtend the duration of the pump. Cooling:
The built in cooling system can make the pump normally work whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the beat produced by the motor from the pump circulation to the cooling barrel and to the pump casing and, when external cooling is required, the cooling sleeve may be separated from the pump casing and individually connected to the cooling system. Motor:
Of F class insulation, max. working temperatures 155 C, and of a protective grade IP68 with the effective seal.
Mechanical seal: Use high quality mechanical seal, two ways of the seal are in series with each other and individually work to separate the motor from the pump seal to provide the motor with a dual protection.
Oil chamber:
Oil can lubricate and cool the mechanical seal and realize the attached function of safety by preventing liquid from penetrating into the motor.
Impeller:
With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency. There are suitable impellers at choice for every point of working condition.
Pump casing:
Use the know-how of CAD/CAM to make it of max. efficiency and min wearability
Shaft:
The pump is coaxial with the motor and the sealing device on the end of the shaft prevents against contacting with the medium to protect is from corrosion.
Application (1) Waste water drainage in factories and industries. (2) Drain system for municipal sewage plant (3) Waste water drainage in residential area. (4) Flood system drainage (5) Waste water drainage in hospitals and hotels (6) Municipal facilities and construction area (7) Exploration and mining equipment (8) Pump for biomass pool and agriculture irrigation (9) River and pond dredging PProduct Show CCompany Information AN Pump Factory History: Established in 1986 Business Type: Manufacturer and exporter
Main Products: Slurry Pump , submersible Sewage Pump , Stainless Steel Pump, Water Pump , Sand and Gravel Pump, Dredger Pump , Pulp Pump , Sea Water Pump, Irrigation Pump, Diesel Water Pump, Chemical Pump, Circulation Pump etc. VIEW MORE>> PPackaging & Shipping
FFAQ Can you produce the pump with my own brand ? Yes, we have been offering OEM service for 30 years. Could we pay a visit to your factory ? Yes, you are always welcome to visit our factory. Is there any after-sales service? Yes, we can arrange our engineer to go to your application site for assembly or maintenance.Can you help us do the custom clearance ? Yes, we can. We can help you find a professional custom clearance company to do it. . What information should I let you know if I want to get a quotation?Please let us know the pump capacity, head, medium, operation situation, quantity, etc.Can you produce goods with special specification ? First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible Contact us if you need more details on Electric Motor Water Pump. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Small Sump Pump、Electric Driven Hydraulic Pump. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Submersible Sewage Pump
