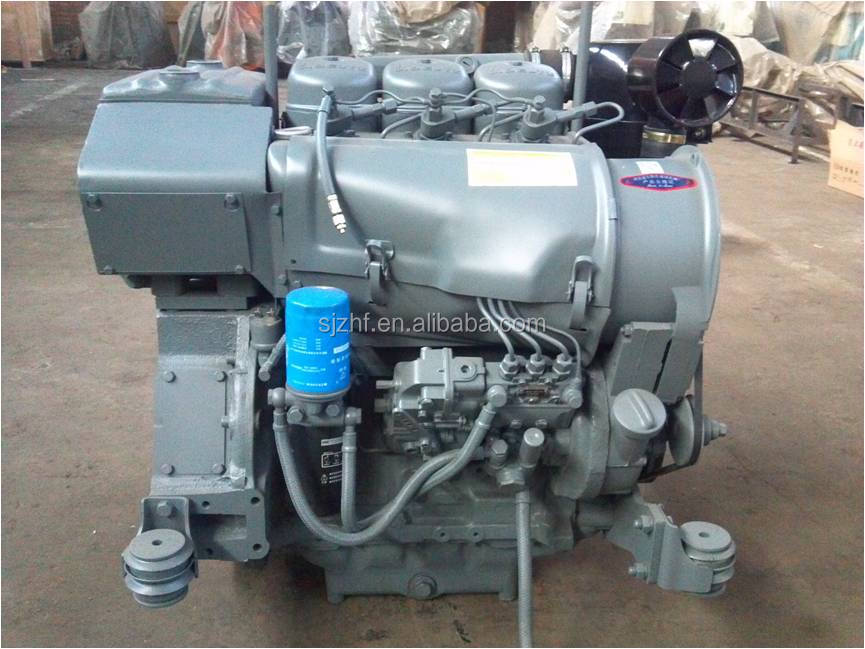

Deutz f3l912W 3 cylinder air cooled 4 stroke deutz 3 cylinder diesel engine

Deutz F3L912w DIESEL ENGINE

In-line, 3Cylinder, 4 Cycle Diesel Engine
Bore×Stroke	100mm×120mm
Displacement	2.827 Liters
Compression Ration	19:1
Cooling Way	Air cooled
Combustion system	Two-stage combustion
Inspiration	Natural intake
Direction of rotation	Counterclockwise(face to flywheel end)
Fuel consumption ratio	263.8g/kwh(limit value)
Oil consumption ratio	2.04g/kwh(limit value)
Lubricant Capacity	8Liters
Net Weight	330kg
Overall Dimension(L×W×H)	722mm×664mm×814mm



Usage	Power class	Power	Speed (rpm)
			1500	1800	2000	2150	2300	2500
Construction equipment	ISO 3046/1(IFN) (Highly intermittent)	P(kW)	22	26	29	30	32	33
		P(HP)	30	35	49	41	44	45
	ISO 3046/1(IFN) (Intermittent)	P(kW)	21	25	27	29	30	32
		P(HP)	29	34	37	39	41	44
	ICFN (Continuous)	P(kW)	20	24	26	27	29
		P(HP)	27	33	35	37	39

   Deutz F3L912 diesel engine Standard configuration:oil filter, diesel filter,oil batch air filter,12V starting motor,12Vcharged generator,4 engine elastic supports,flywheel:6.5, flywheel housing:SAE5, cylinder head temperature sensor and alarm switch,oil pressure sensor and alarm switch,diesel engine accelerator adjust device,mechanical adjusting speed device, diesel engine paint(gray),exhaust manifold silencer,mechanical shut down,optional:electric shut down device 12V Product imageUsage Packing & Delivery*  Packing Detail: plywood case package, pallet, carton
*  Delivery Detail: It dependent on the quantity of your order. Normally 5-30 days for one 20" container. Our Factory1. A total area of more than 124 thousands squre meters2. About 280 technical employees in the factory3. More than 30 years experience in diesel engine field4. High quality and competitive price5. Professional service and prompt reply Our Advantages Certificate More Diesel EngineIf you need more deutz engine . plase Click on the below picture, Thanks  deutz F1L511 diesel engine    deutz F2L511 diesel engine     deutz F2L912 diesel enginedeutz F4L912/913 diesel       deutz F6L912/913 diesel engine   deutz BF4L913 diesel engine engine with clutchdeutz BF6L913C diesel engine   deutz F8L413 diesel engine    deutz BF4M2012 diesel engine

Contact us if you need more details on Deutz 3 Cylinder Diesel Engine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Deutz F3l912w、Deutz Diesel Engines. If these products fail to match your need, please contact us and we would like to provide relevant information.
