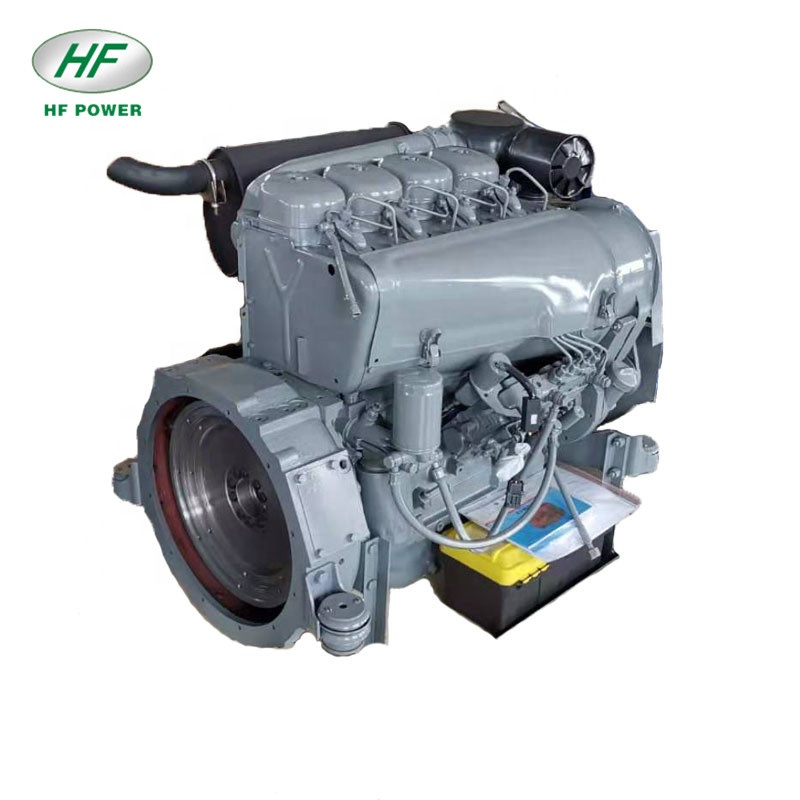

Deutz F4L912 4 cylinder 4-stroke deutz diesel engine motor diesel air cooled marine diesel

Deutz f4l912 DIESEL ENGINE

4 In-line, 4Cylinder, 4 Cycle Diesel Engine
Bore×Stroke	100mm×120mm
Displacement	3.770 Liters
Compression Ration	17:1
Cooling Way	Air cooled
Combustion system	Direct injection
Inspiration	Natural intake
Direction of rotation	Counterclockwise(face to flywheel end)
Fuel consumption ratio	236.6g/kwh(limit value)
Oil consumption ratio	2.04g/kwh(limit value)
Lubricant Capacity	9.5Liters
Net Weight	400kg
Overall Dimension(L×W×H)	852mm×664mm×799mm

(Usage)	(Power class)	(Power)	(Speed)(rpm)
			1500	1800	2000	2150	2300	2500
(Construction equipment)	ISO 3046/1(IFN) (Highly intermittent)	P(kW)	35	43	46	49	51	54
		P(HP)	48	58	63	67	69	73
	ISO 3046/1(IFN) (Intermittent)	P(kW)	34	40	44	46	49	51
		P(HP)	46	54	60	63	67	69
	ICFN (Continuous) (used for Water Pump)	P(kW)	32	38	41	44	46
		P(HP)	44	52	56	60	63
(Genset)	ICXN (Continuous)	P(kW)	34	40
		P(HP)	46	54
(Marine)	ICXN	P(kW)	32	38	41	44	46
		P(HP)	44	52	56	60	63
	I0FN	P(kW)				49	51	54
		P(HP)				67	69	73

Deutz F4L912 diesel engine standard configurtion: oil filter, diesel filter,oil batch air filter,12V starting motor,12Vcharged generator,4 engine elastic supports,flywheel:6.5, flywheel housing:SAE5, cylinder head temperature sensor and alarm switch,oil pressure sensor and alarm switch,diesel engine accelerator adjust device,mechanical adjusting speed device, diesel engine paint(gray),exhaust manifold silencer,mechanical shut down,optional:electric shut down device 12V  Customer Feedback   Our Factory   1. A total area of more than 124 thousands squre meters 2. About 280 technical employees in the factory 3. More than 30 years experience in diesel engine field 4. High quality and competitive price 5. Professional service and prompt reply   Warehouse Sufficient parts stocks guarantee the fast delivery time.       Certificate   More Diesel Engines               Deutz F3L912 Engine                            Deutz F4L912 Engine                             Deutz F6L912 Engine                 Deutz F6L913 Engine                            Deutz BF6L913C Engine                         Deutz F8L413 Engine          Deutz BF4M2012 Engine                     Deutz BF6M1013 Engine                            Deutz BF6M1015 Engine                   Click here for more information
